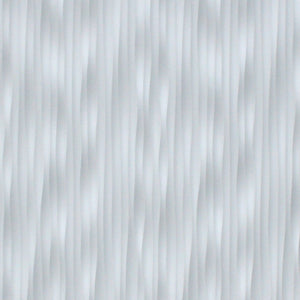

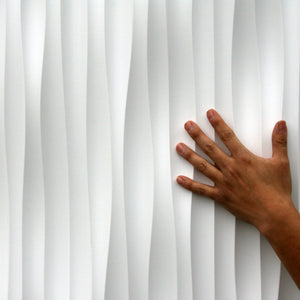

The SOT002x2 panel from Interlam’s Art Diffusion collection offers a bold and dimensional aesthetic, designed for spaces that demand visual impact and refined craftsmanship. Featuring a repeating, continuous pattern, this panel adds texture, rhythm, and depth to any architectural surface.
Each panel measures 48″ x 96″, with a 1.0″ pattern depth and 1.5″ thickness, providing a strong sculptural presence. The pattern repeats every 24 inches perpendicular and 96 inches parallel to the pattern direction, ensuring a seamless flow across large installations.
Panels can be installed vertically or horizontally, with custom sizes available upon request. To achieve precise alignment, panels can be force matched—a layout submission is required. Note: A-B panel matching is required for horizontal pattern repeats, and this design is not available in 1.5″ Fire Rated MDF.
Perfect for feature walls, large-scale commercial interiors, and statement designs where art and architecture intersect.
Available Factory Finishes
Available Cores
Core material
────
Interlam® Designed Fiberboard (IDF / MDF)
Panel size
────
Standard: 48” × 96” (custom up to 60” × 120”)
Panel thickness
────
½” up to 3” (depending on pattern & application)
Lead time
────
Typically 2–4 weeks (based on approved drawings)
